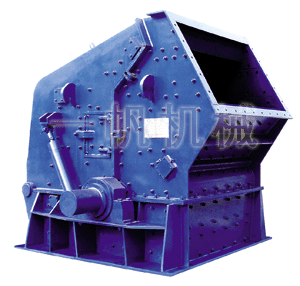

 PF Series Impact Crusher

  PF Series Impact Crusher is mainly used in secondary crushing, and can crush material of crushing compression strength no more than 320 Mpa. It is suitable to produce high rank highway, hydroelectric and building material.
Features and Benefits:
?。?)Even crushing function of multi-cavities which is suitable to crush hard material.
?。?)Reasonable design of leveling plate making the finished material finer and cubic-shaped ?without internal cracks.
 (3)Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
?。?)Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.
?。?)New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.

Model Rotor Spec (mm) Max Feed Edge (mm) Motor Power (kw) Feed Opening Size (mm) Capacity (t/h) Overall Domensions(L×W×H) (mm) Weight (t)
PF-0807 850×700 300 30-45 400×730 15-30 2210×1490×2670 8.1
PF-1007 1000×700 300 37-55 400×730 30-50 2400×1558×2660 9.5
PF-1010 1000×1050 350 55-75 400×1080 50-80 2400×2250×2620 12.2
PF-1210 1250×1050 350 110-132 400×1080 70-120 2690×2338×2890 14.1
PF-1214 1250×1400 350 132-160 400×1430 130-180 2690×2688×2890 18.6
PF-1310 1300×1050 400 110-160 490×1170 80-140 2780×2478×2855 16.2
PF-1315 1320×1500 500 180-260 860×1520 160-250 3096×3273×2667 19.3
