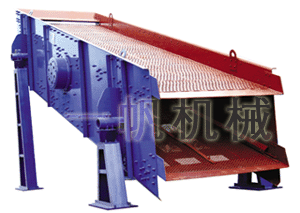

YK Series Circular Vibrating Screen


 YK Series Circular Vibrating Screen adopts German technology, and is specially designed to sieve different sizes of aggregate. It is also applied in coal dressing, ore dressing, building material, electricity and chemical industries.
Features and Benefits:
      1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
      2. The beam and case of the screen are connected with high strength bolts without welding.
      3. Simple structure, easy to repair.
      4. Adopt tire coupling and soft connection makes operation smooth.
      5. High efficiency, easy maintenance, sturdy and durable.

Model Deck Size(m2) Capacity(m3/h) Motor Power(kw) Weight(t)

      2YK1224

2.88

20-120

5.5

2.15

      2YK1235

4.2

20-150

5.5

2.45

      3YK1235

4.2

20-150

7.5

3.05

      4YK1235

4.2

20-150

11

3.65

      YK1545

6.75

22-150

11

4.2

      2YK1545

6.75

22-150

15

5.2

      3YK1545

6.75

22-150

15

6.05

      4YK1545

6.75

22-150

18.5

7.14

      YK1860

10.8

32-350

15

4.65

      2YK1860

10.8

32-350

18.5

6.14

      3YK1860

10.8

32-350

18.5

7.59

      4YK1860

10.8

32-350

22

9

      YK2160

12.6

66-720

18.5

4.97

      2YK2160

12.6

66-720

22

7.16

      3YK2160

12.6

66-720

30

8.81

      4YK2160

12.6

66-720

30

10.97

      YK2460

14.4

75-750

22

6.2

      2YK2460

14.4

75-750

30

7.84

      3YK2460

14.4

75-750

30

9.78

      4YK2460

14.4

75-750

30

12.07

      YK3060

17.4

200-900

30

12

      2YK3060

17.4

200-900

37

16

      3YK3060

17.4

200-900

45

19

      4YK3060

17.4

200-900

45

22
